Lincoln Corsair: Capacities and Specifications / Engine Specifications

Lincoln Corsair 2020-2024 Owners Manual / Capacities and Specifications / Engine Specifications

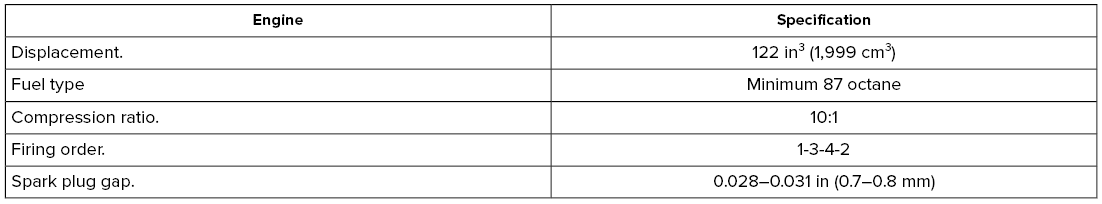

2.0L

Lincoln Corsair. Engine Specifications

Drivebelt Routing

Lincoln Corsair. Engine Specifications

  1. The long drivebelt is on the first pulley groove closest to the engine.
  2. The short drivebelt is on the second pulley groove farthest from engine.

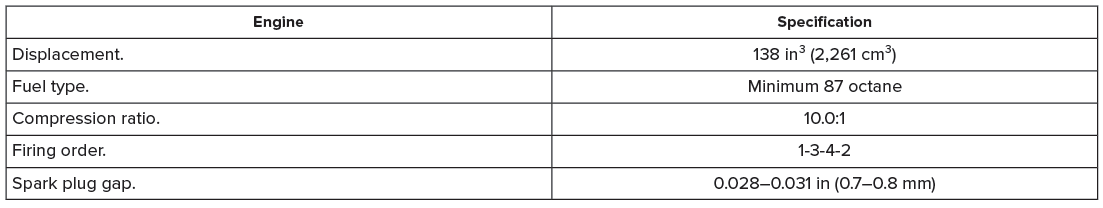

2.3L

Lincoln Corsair. Engine Specifications

Drivebelt Routing

Lincoln Corsair. Engine Specifications

  1. The long drivebelt is on the first pulley groove closest to the engine.
  2. The short drivebelt is on the second pulley groove farthest from the engine.

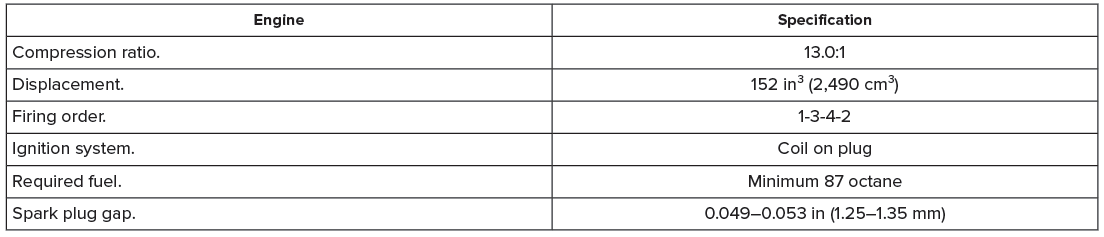

2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Lincoln Corsair. Engine Specifications
