Lincoln Corsair: Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4 / General Procedures - Power Transfer Unit Fluid Level Check

Lincoln Corsair 2020-2024 Service Manual / Powertrain / Automatic Transmission / Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4 / General Procedures - Power Transfer Unit Fluid Level Check

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Activation

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Remove the underbody shield.
Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation).

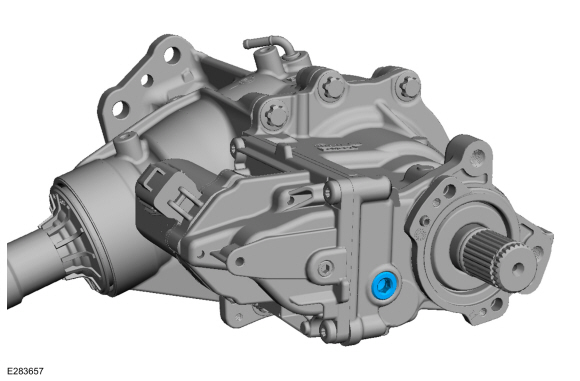

Remove the PTU fill plug.

Fill the PTU with clean fluid, level with the fill plug opening.
Refer to: Specifications (307-07B Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4, Specifications).
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Install the PTU fill plug.
Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: 360°

Install the underbody shield.
Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation).
