Lincoln Corsair: Exterior Trim and Ornamentation / Removal and Installation - Front Door Moulding
Special Tool(s) / General Equipment
| Interior Trim Remover |
Removal
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH door shown, RH door similar.
-
NOTE: Do not use excessive force when removing retainers, to avoid damage to moulding.

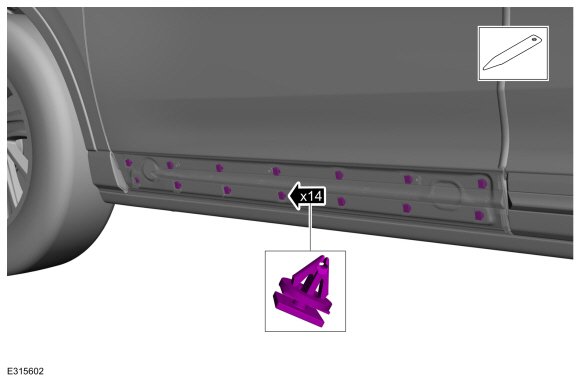

Using a non-marring trim tool, disengage the retainers attaching moulding to the door.
Use the General Equipment: Interior Trim Remover
.jpg) |
-

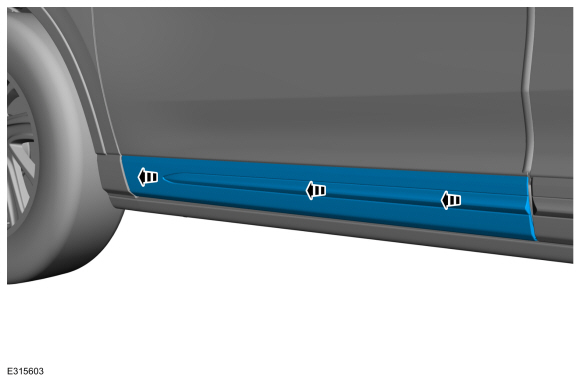

Remove the moulding.
.jpg) |
Installation
-
To install, reverse the removal procedure.
Removal and Installation - A-Pillar Moulding
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTICE:
Only use moderate force.
NOTE:
Removal steps in this procedure may contain installation details...
Removal and Installation - Front Door Upper Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
All vehicles
Lower the door window glass completely...
