Lincoln Corsair: Automatic Transmission - 8-Speed Automatic Transmission – 8F35/8F40 / Removal and Installation - Halfshaft Seal RH

Special Tool(s) / General Equipment

205-153 (T80T-4000-W)
Handle
307-758
Installer, Axle Seal -FWD
Flat Headed Screw Driver

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the front RH halfshaft.
    Refer to: Front Halfshaft RH - AWD (205-04 Front Drive Halfshafts, Removal and Installation).
    Refer to: Front Halfshaft RH - 2.0L EcoBoost (177kW/240PS) – MI4, FWD (205-04 Front Drive Halfshafts, Removal and Installation).
  1. Remove and discard the RH halfshaft seal.
    Use the General Equipment: Flat Headed Screw Driver

Installation

  1. Install a new halfshaft seal on the special tool.
    Use Special Service Tool: 307-758  Installer, Axle Seal -FWD. , 205-153 (T80T-4000-W)  Handle.

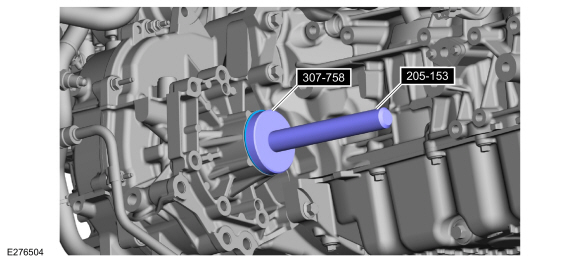

  1. Using the special tool, install the RH halfshaft seal.
    Use Special Service Tool: 205-153 (T80T-4000-W)  Handle. , 307-758  Installer, Axle Seal -FWD.
  1. Install the front RH halfshaft.
    Refer to: Front Halfshaft RH - AWD (205-04 Front Drive Halfshafts, Removal and Installation).
    Refer to: Front Halfshaft RH - 2.0L EcoBoost (177kW/240PS) – MI4, FWD (205-04 Front Drive Halfshafts, Removal and Installation).
  1. Check the transmission fluid level.
