Lincoln Corsair: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Glass
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the aft rear door upper moulding.
Refer to: Rear Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

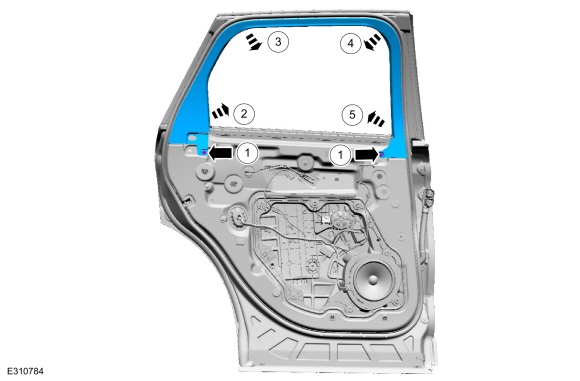

Remove the upper interior rear door trim.
-
Remove the pin-type retainers.
-
Release the upper interior rear door trim.
-
Release the upper interior rear door trim.
-
Release the upper interior rear door trim.
-
Remove the upper interior rear door trim.
-
Remove the rear door inner belt moulding.
-

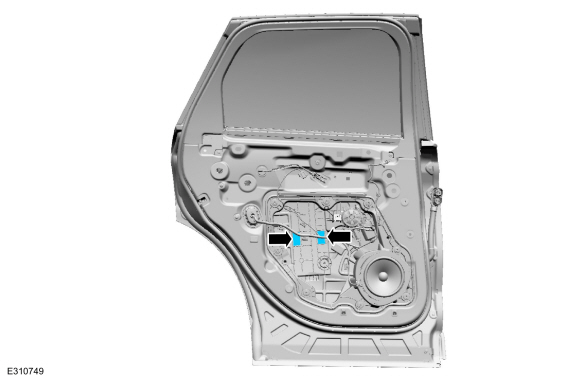

Remove the rear door window glass release access covers.
-

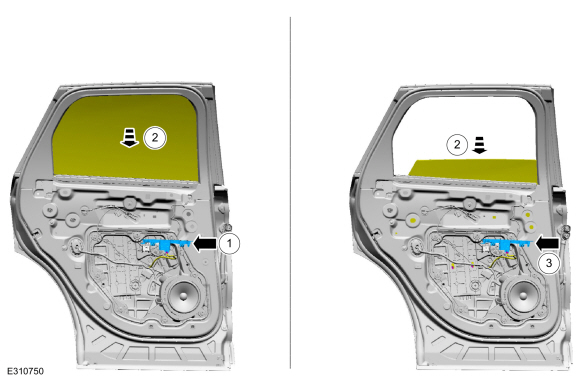

Lower the rear door window glass to the three quarters down position.
-
Connect the window control switch.
-
Lower the rear door window glass to the three quarters down position.
-
Disconnect the window control switch.
-

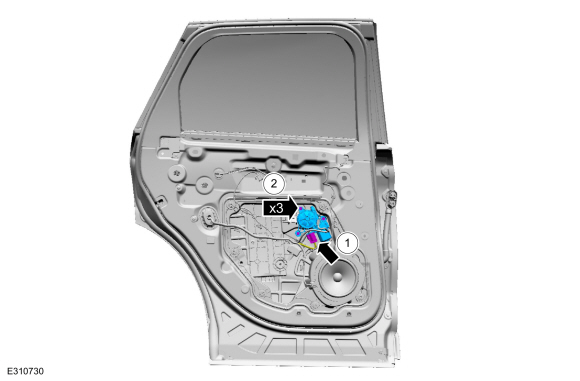

Remove the rear door window glass.
-
Release the rear door window glass retaining clips.
Use the General Equipment: Punch
-
Remove the rear door window glass.
Installation
-
To install, reverse the removal procedure.
-
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
